30 Watt SMD Electronic Component Counting Machine High Performance

Product Categories

Shenzhen Kanghongjin Electronics Co., Ltd

Contact Now

Name: 30 Watt SMD Electronic Component Counting Machine High Performance
Brand: KangHongJin
Price: 1 USD

Brand Name : KangHongJin

Model Number : K-801

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : K-801

Material : PET Shell + Metal

High Light : SMT Automatic Machine, SMD, SMD Automatic Counter, 801, Component Reel Counter, SMT

Contact Now

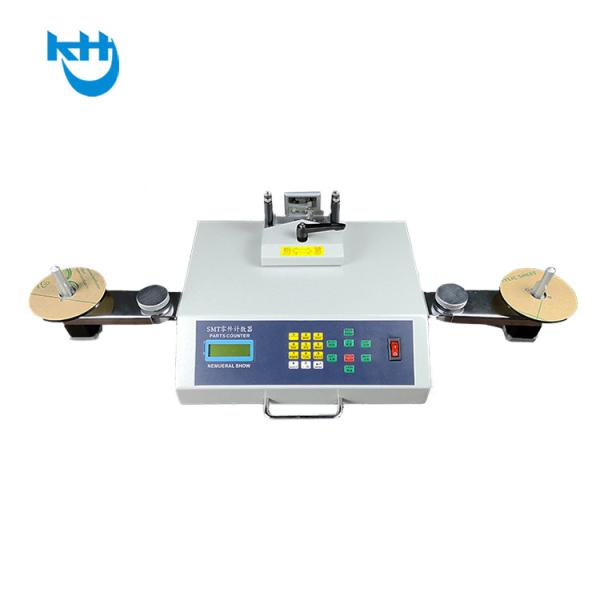

K-801 SMD Automatic Electronic Component Reel Counter

DESCRIPTION

The SMD counter adopts the principle of photoelectric sensing,and uses the corresponding relation

between the guide hole and the part, through the special-purpose processing chip and the large-scale

centralized circuit processing, realizes the zero error,accurately measures the number of SMD

parts, can realize the convenient and quick count, is the high efficiency auxiliary equipment of SMT

material management.

Type	K-IH881 (smart design)	K-801 (enhanced version)	K-801E (Common version)	K-802E (smart design)	K-802 (smart design)	K-IH882 (smart design)
Sliding sideways function	Not support			Support
Set to number of material	Support			Support
Print, scan	Support			Support
The leftover material automatic stop		Not support		Not support
Automatic stop	Not support			Support
Electrical machinery		42 stepper motor		42 stepper motor
Multiple speed	8 files	3 files		3 files		8 files
Voice broadcast	Support	Not support		Not support		Support
Connection mes/ erpSystem (Secondary development)	Support
Print barcode and QR code	Support
Weight	11kg		10kg	10kg	11kg
Dimension	730×230×270mm	750×340×190mm		750×340×190mm		730×230×270mm

INSTRUCTIONS

K-801E: There is no detection function for material issuing and stocktaking

K-801: There is no detection function for material issuing and stocktaking. The quality is better than 801E

K-802E: It has detection function for issuing and counting

K-802: It has the detection function of issuing materials and counting. The quality is better than 802E

K-IH881: There is no detection function for issuing and stocktaking. There is voice broadcast. The tailings stop

automatically and the discharging Angle is 45 degrees

K-IH882: It has the detection function of material issuing and inventory, voice broadcast, automatic stop of

tailings, and the discharging Angle is 45 degrees

Power supply	AC110V or AC220V (convertible)
Capability	200cm 600pcs per minute
Power consumption	30 W
Counting volume	-99999 ~ 99999pcs
Size	L350W774H184mm
Weight	10kg
Reel Diameter	Suitable for SMD Reel with any diameter
Reel Interval Distance	2,4,8,10,12,16,24,32,44,56mm
Reel Width	8,12,16,24,32,44,56mm
